General Features:

• Standard Support: Gigabit Ethernet (1000 Base-T)

• Bandwidth: Up to 100 MHz

• Compliance:

• TIA/EIA-568.C.2

• Verified compliant with EIA/TIA standards by ETL

• CUL-listed

• EMI Protection: Tinned Copper for enhanced protection against EMI and signal loss

• Packaging: Easy-to-pull box for easier installation

Construction & Material:

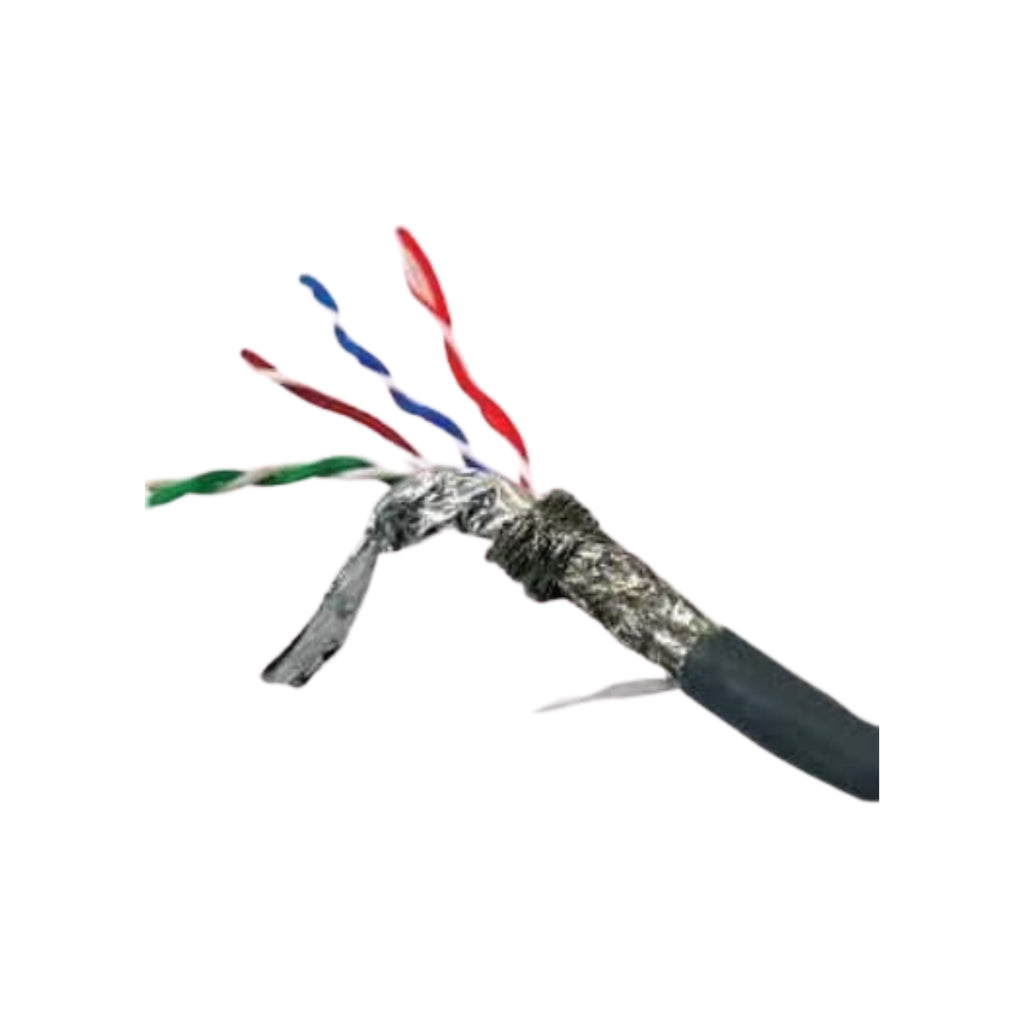

• Cable Type: 4-pair Shielded Twisted Pair (SFTP)

• Conductor: 24 AWG Solid Copper

• Insulation Material: HD-PE (High-Density Polyethylene)

• Jacket Material: FR PVC (Flame Retardant Polyvinyl Chloride)

• Jacket Hardness: 45P (90A ± 2A, Shore)

• Shielding:

• Pairs wrapped in polyester tape and aluminum foil with drain wire

• Outside Tape Metal: MYLAR

• Overlap Rate: 25%

• Drain Wire: 24 AWG (0.500 ± 0.007mm)

Environmental & Heat Resistance:

• Heat Resistance: Minimum 75°C (Temperature Limited)

• Flammability Rating: UL94V-0
