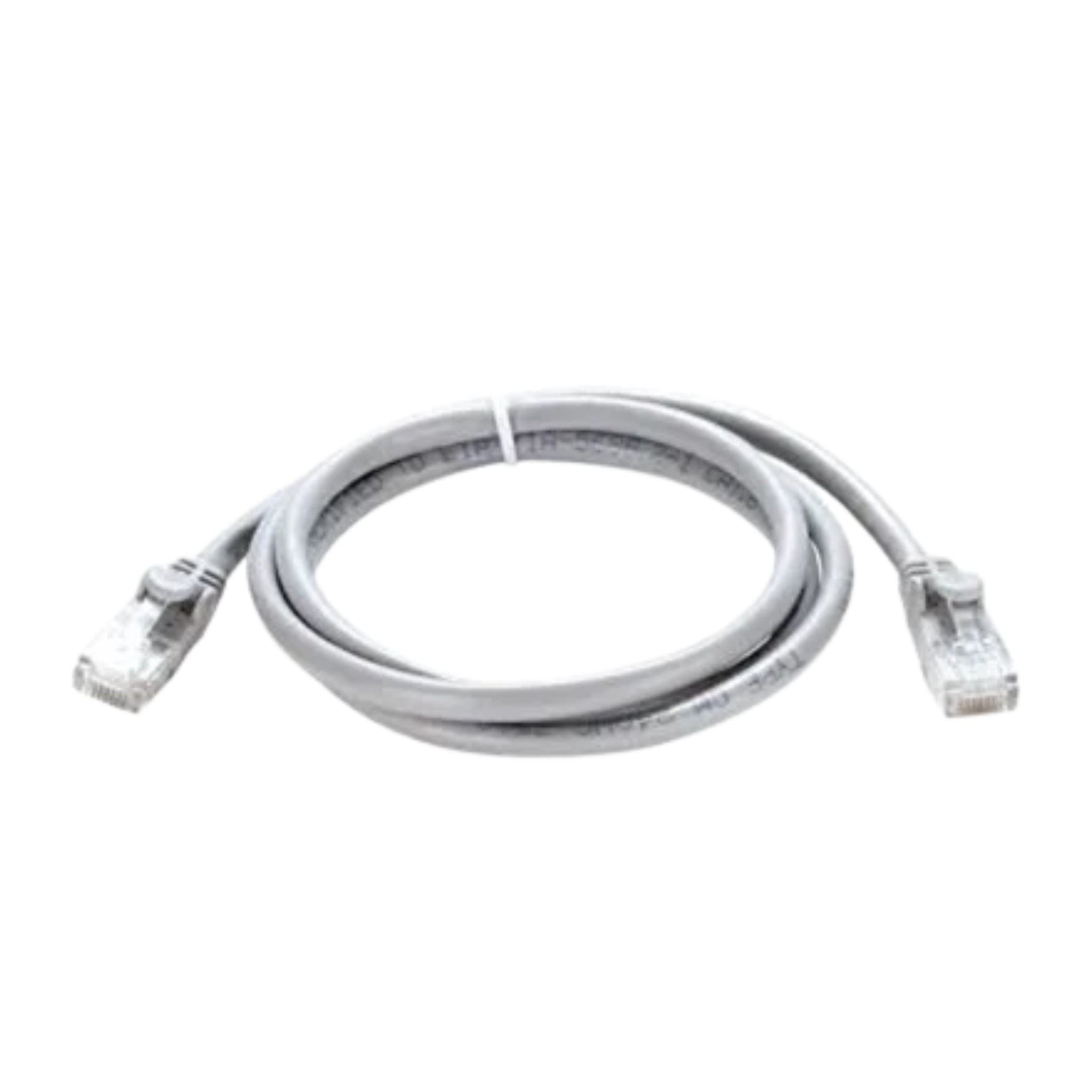

• The D-Link Cat 6A Patch Cord 2M Grey (NCB-6AUGRYR1-2) is a high-performance Ethernet cable designed for fast and reliable data transmission over Local Area Networks (LANs).

• It features 4 pairs of Unshielded Twisted Pair (UTP) copper conductors, ensuring minimal interference, superior durability, and high-speed performance.

• Supporting Power over Ethernet (PoE), Gigabit Ethernet, and high-speed broadband applications, this patch cord is ideal for enterprise networks, data centers, and high-speed home networking setups.

Technical Specifications:

General Specifications:

• Brand: D-Link

• Model Number: NCB-6AUGRYR1-2

• Category: Cat 6A UTP Patch Cord

• Color: Grey

• Cable Length: 2 Meters

Cable & Conductor Details:

• Cable Type: 4 Pairs Unshielded Twisted Pair (UTP)

• Conductor Material: Bare Copper

• Conductor Size: 24 AWG

• Insulation Material: High-Density Polyethylene (HDPE)

• Jacket Material: PVC UL94V-0

• Heat Resistance: Minimum 60°C

• Flame Property Compliance: VW-1 (UL) and FT-1 (CSA)

Modular Connector / Plug Specifications:

• Connector Type: RJ-45 8P (Transparent Color)

• Gold Plating: 30U”

• Contact Blade Material: Phosphor Bronze

• Temperature Range: -10°C to 80°C

• Dielectric Withstanding Voltage: 500V AC

• Insulation Resistance: ≤ 35M Ohm

• Durability: 750 Matching Cycles

• Cable-to-Plug Tensile Strength: 20lbs (89N) Minimum

• Material: Polycarbonate (PC) UL94-V-0

Performance & Transmission:

• Ethernet Frequency: 550 MHz

• Maximum Data Transfer Speed: Up to 10Gbps

• Supported Network Protocols:

• 10BASE-T, 100BASE-TX, 1000BASE-T (IEEE 802.3)

• 100VG-AnyLAN (IEEE 802.12)

• 550 MHz Broadband Video

• Voice, T1, ISDN

• 155/622 Mbps ATM

• Power over Ethernet (PoE)

Certifications & Compliance:

• TIA/EIA-568C.2 Compliant

• UL 444 (for Copper Conductors)

• UL 758 / Style 2835

• UL 1581 (Test Standard)

• ETL Verified

• CUL Listed

• RoHS Compliant
