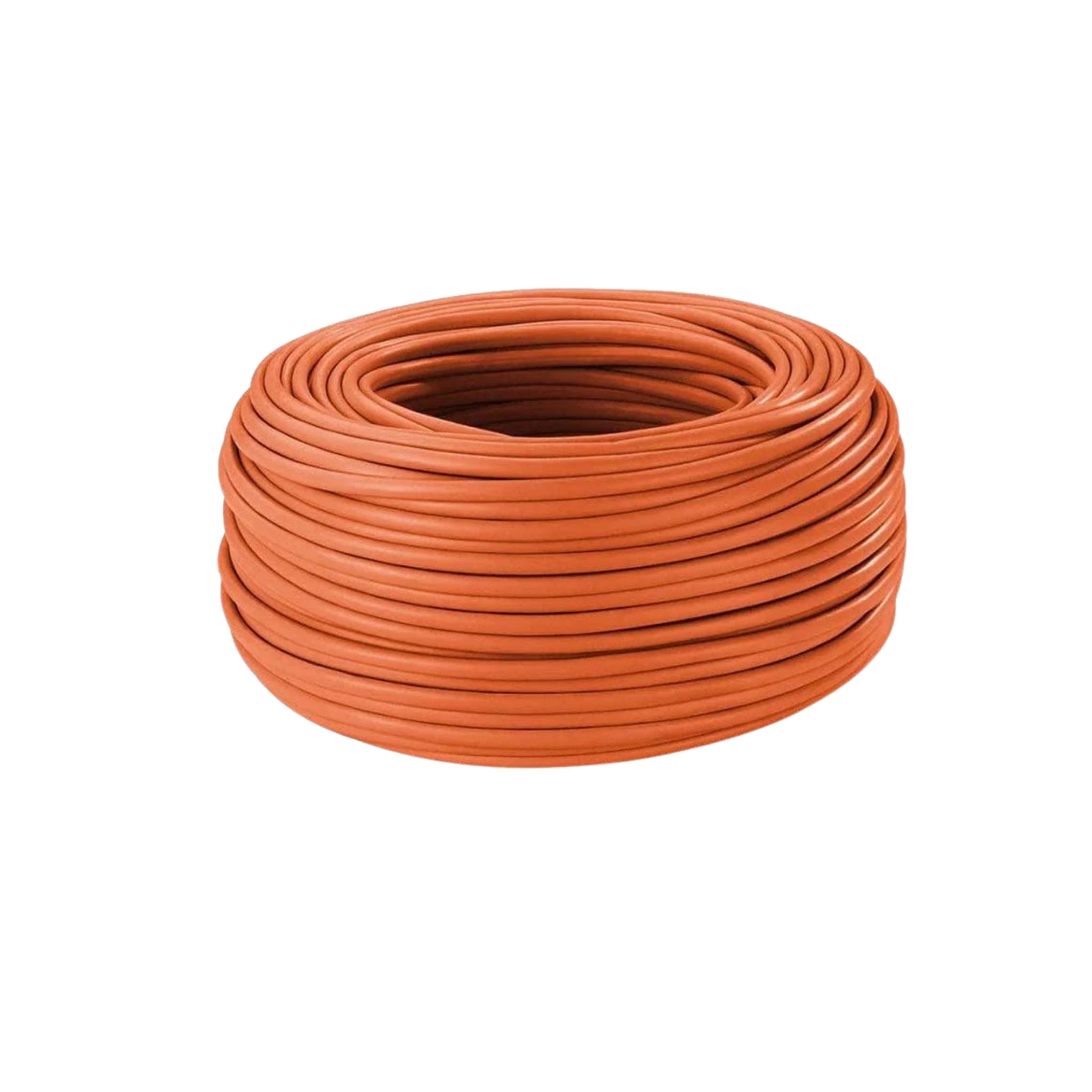

D-Link Cat 6 Cable Box 305 Mtrs – Orange (NCB-C6UORGR-305)
Product Description
The D-Link Cat 6 Cable Box 305 Mtrs – Orange is a high-performance structured LAN cable engineered for reliable Gigabit Ethernet networking. Designed to support speeds up to 1000 Mbps (1000Base-T) and operating at 250 MHz bandwidth, this Category 6 UTP cable ensures stable data transmission with minimal crosstalk and signal loss.
Manufactured using 23 AWG high-quality bare copper conductors, along with HDPE insulation and a durable PVC outer jacket, the cable delivers superior electrical performance and long-term durability. The 305-meter easy pull box packaging enables smooth installation and efficient cable management for enterprise and commercial networking projects.
Compliant with TIA/EIA 568C.2 and ISO/IEC 11801 Class E standards, this cable is ideal for professional structured cabling systems.
Key Highlights
✔ Category 6 UTP LAN Cable
✔ 305 Meter Easy Pull Box
✔ Supports 1000Base-T Gigabit Ethernet
✔ 250 MHz Bandwidth
✔ 23 AWG Bare Copper Conductors
✔ UL Listed & ETL Verified
✔ Durable PVC Jacket – Orange Color
✔ Ideal for Enterprise & Commercial Installations
Technical Specifications
General Specifications
- Brand: D-Link
- Model: NCB-C6UORGR-305
- Part Number: NCB-C6UORGR-305
- Type: LAN Cable
- Cable Category: Cat 6
- UTP/STP: Unshielded Twisted Pair (UTP)
- Ethernet Transmission Standard: 1000Base-T
- Cable Frequency: 250 MHz
- Cable Length: 305 Meters
- Color: Orange
- Suitable For: RJ45 Cat 6 LAN Applications
- Compatible Devices: Computer, Switch, Router, Patch Panel
Transmission Features
- Nominal Impedance: 100 Ohms
- Propagation Delay Skew: 45 ns / 100 m
- Dielectric Strength: 0.75 kV/m
- Voltage Rating: 72 V
- Rating Temperature: 75°C
- Minimum Operating Temperature: -20°C
- Maximum Storage Temperature: 50°C
Material Specifications
- Conductor: 0.57 mm Bare Copper (23 AWG) × 4 Pairs
- Insulation: HDPE
- Nominal Outer Diameter: 6.1 mm
- Jacket Material: PVC
- Jacket Hardness: 45P (90A ± 2A, Shore)
- Construction: Four twisted pairs (two insulated conductors twisted together per pair)
Compliance & Certification
- TIA/EIA 568C.2
- ISO/IEC 11801 Class E
- UL Listed
- ETL Verified
Applications
- Enterprise LAN Infrastructure
- Office & Commercial Networking
- Data Centers
- Structured Cabling Systems
- Gigabit Ethernet Installations
