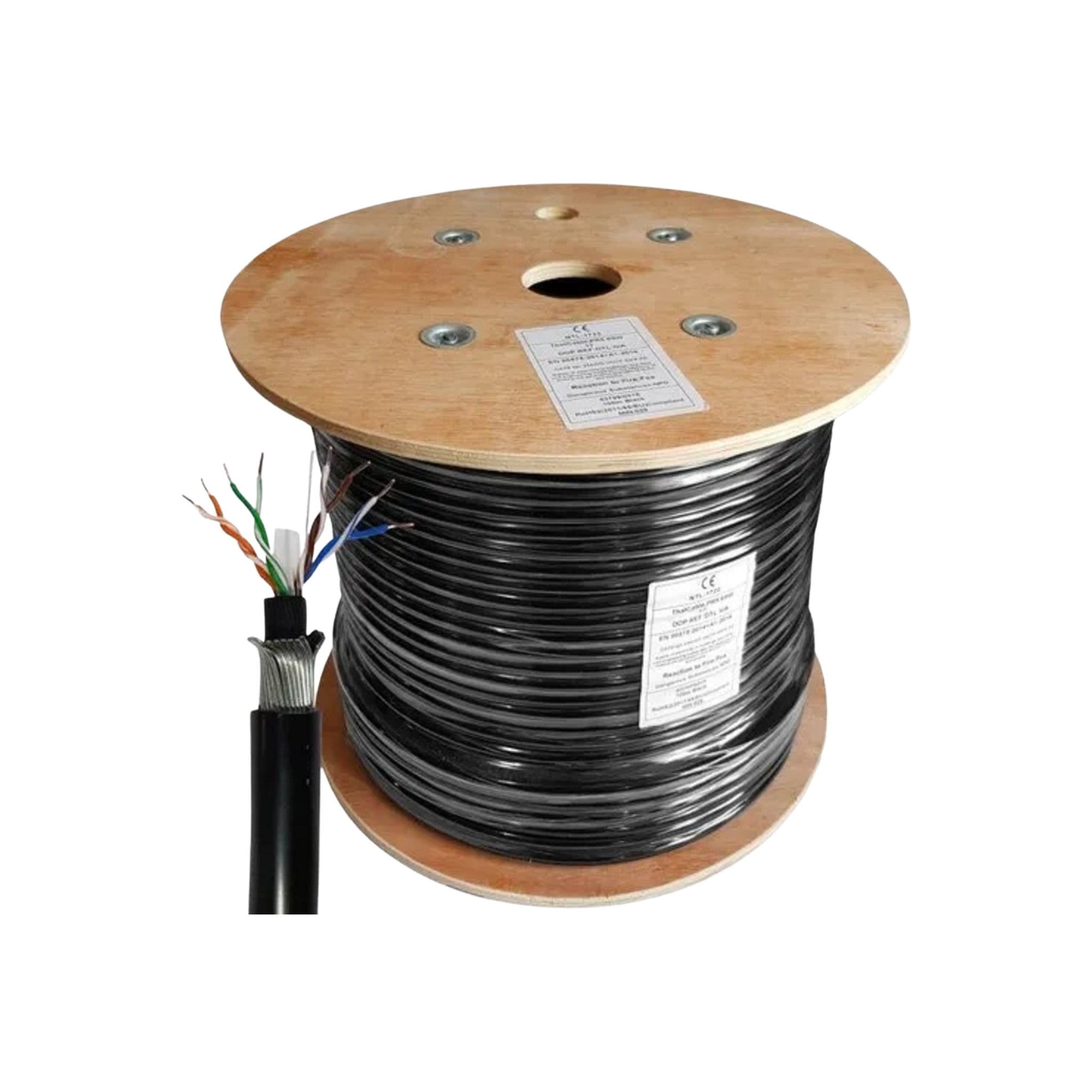

D-Link Cat 6 STP Armoured Cable 305 Mtrs (NCB-C6SBLKR-305-A)
Product Description
The D-Link Cat 6 STP Armoured Cable 305 Mtrs is a high-performance, shielded and mechanically protected LAN cable designed for demanding networking environments. Built to support Gigabit Ethernet (1000Base-T) applications with a bandwidth of 250 MHz, this cable ensures reliable, interference-free data transmission.
Featuring Shielded Twisted Pair (STP) construction with aluminum foil shielding and additional armouring, the cable provides enhanced protection against electromagnetic interference (EMI), mechanical stress, and rodent damage. The armored layer makes it ideal for outdoor installations, underground cabling, industrial environments, and high-risk areas.
Supplied in a 305-meter box, this cable is engineered to meet industry standards and deliver long-term performance in mission-critical networking applications.
Key Highlights
✔ Category 6 Shielded Twisted Pair (STP) Cable
✔ Armoured Construction for Extra Protection
✔ 305 Meter Cable Box
✔ 250 MHz Bandwidth
✔ Supports 1000Base-T Gigabit Ethernet
✔ EMI & Noise Resistant
✔ Suitable for Outdoor & Industrial Installations
✔ Heavy-Duty & Durable Design
Technical Specifications
General Specifications
- Brand: D-Link
- Model: NCB-C6SBLKR-305-A
- Cable Category: Cat 6
- Type: STP (Shielded Twisted Pair) Armoured Cable
- Cable Length: 305 Meters
- Ethernet Standard: 1000Base-T
- Bandwidth: 250 MHz
- Color: Black
- Application: Indoor & Outdoor LAN Installations
Construction Details
- Conductor: 23/24 AWG Solid Bare Copper (4 Pairs)
- Shielding: Aluminum Foil Shield with Drain Wire
- Pair Separator: PE Central Cross Separator
- Armouring: Steel Tape / Armoured Protection Layer
- Outer Jacket: Heavy-Duty PVC / PE Jacket
- Cable Structure: 4 Twisted Pairs
Electrical Characteristics
- Nominal Impedance: 100 Ohms
- Propagation Delay Skew: ≤ 45 ns / 100m
- Dielectric Strength: Approx. 0.75 kV/m
- Supports: Gigabit Ethernet (1000Base-T)
- Compliant With: TIA/EIA 568C.2, ISO/IEC 11801 Class E
Mechanical Properties
- High Crush Resistance
- Enhanced Tensile Strength
- Protection Against Rodents & Physical Damage
- Suitable for Harsh Environmental Conditions
Applications
- Industrial Networking
- Outdoor & Underground Cabling
- Factory & Warehouse Installations
- Campus Networks
- High EMI Environments
- Surveillance & Security Systems
