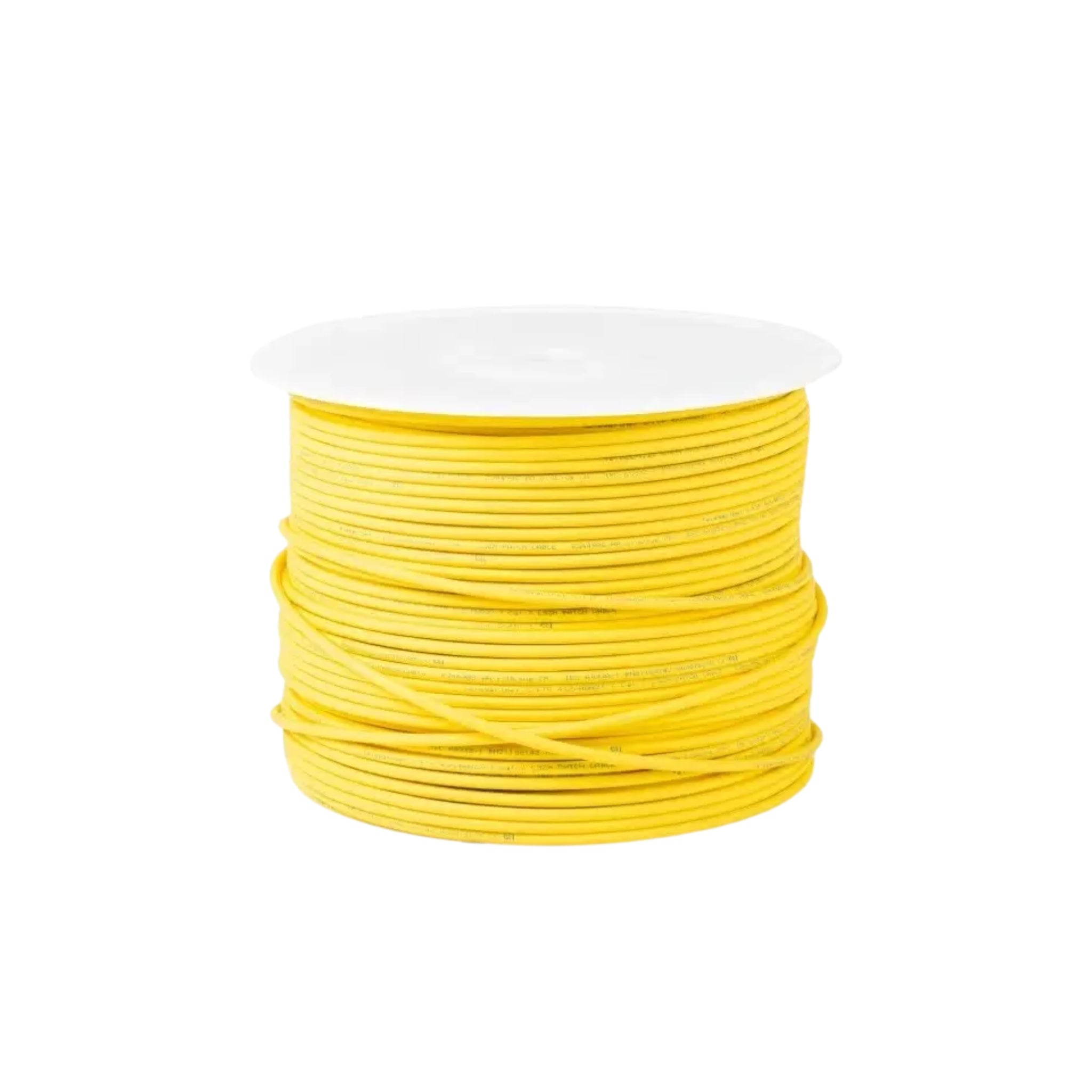

D-Link Cat 6 Cable 305 Mtrs Box – Yellow (NCB-C6UYELR-305)
Product Description
The D-Link Cat 6 Cable 305 Mtrs Box – Yellow is a high-quality structured LAN cable engineered to deliver reliable Gigabit Ethernet performance for enterprise and commercial networking environments. Designed to support speeds up to 1000 Mbps (1000Base-T) with a bandwidth of 250 MHz, this Category 6 UTP cable ensures stable data transmission with minimal crosstalk and signal interference.
Built with 23 AWG solid bare copper conductors and premium-grade insulation, the cable offers excellent electrical performance and long-term durability. Supplied in a convenient 305-meter easy pull box, it enables smooth installation and efficient cable management for large-scale networking projects.
The cable complies with TIA/EIA 568C.2 and ISO/IEC 11801 Class E standards, making it ideal for structured cabling systems, office networks, and data center installations.
Key Highlights
✔ Category 6 UTP LAN Cable
✔ 305 Meter Pull Box Packaging
✔ Supports 1000Base-T Gigabit Ethernet
✔ 250 MHz Bandwidth
✔ 23 AWG Bare Copper Conductors
✔ ETL Verified & UL Listed
✔ Durable PVC Jacket – Yellow Color
✔ Ideal for Structured Cabling Systems
Technical Specifications
General Specifications
- Brand: D-Link
- Model: NCB-C6UYELR-305
- Part Number: NCB-C6UYELR-305
- Type: LAN Cable
- Cable Category: Cat 6
- UTP/STP: Unshielded Twisted Pair (UTP)
- Cable Construction: Stranded Round
- Ethernet Standard: 1000Base-T
- Cable Frequency: 250 MHz
- Color: Yellow
- Cable Length: 305 Meters
- Suitable For: RJ45 CAT 6 LAN
- Compatible Devices: Computer, Switch, Router, Patch Panel
Transmission Features
- Nominal Impedance: 100 Ohms
- Propagation Delay Skew: 45 ns / 100 m
- Dielectric Strength: 0.75 kV/m
- Voltage Rating: 72 V
- Rating Temperature: 75°C
- Minimum Operating Temperature: -20°C
- Maximum Storage Temperature: 50°C
Material Specifications
- Conductor: 0.57 mm Bare Copper (23 AWG) × 4 Pairs
- Insulation: HDPE Insulation
- Outer Diameter: 6.1 mm (Nominal)
- Jacket Material: PVC
- Jacket Hardness: 45P (90A ± 2A, Shore)
- Pair Structure: Two insulated conductors twisted together (4 pairs total)
Compliance & Certification
- TIA/EIA 568C.2
- ISO/IEC 11801 Class E
- UL Listed
- ETL Verified
Applications
- Enterprise LAN Infrastructure
- Office Networking
- Data Centers
- Structured Cabling Installations
- Gigabit Ethernet Deployments
