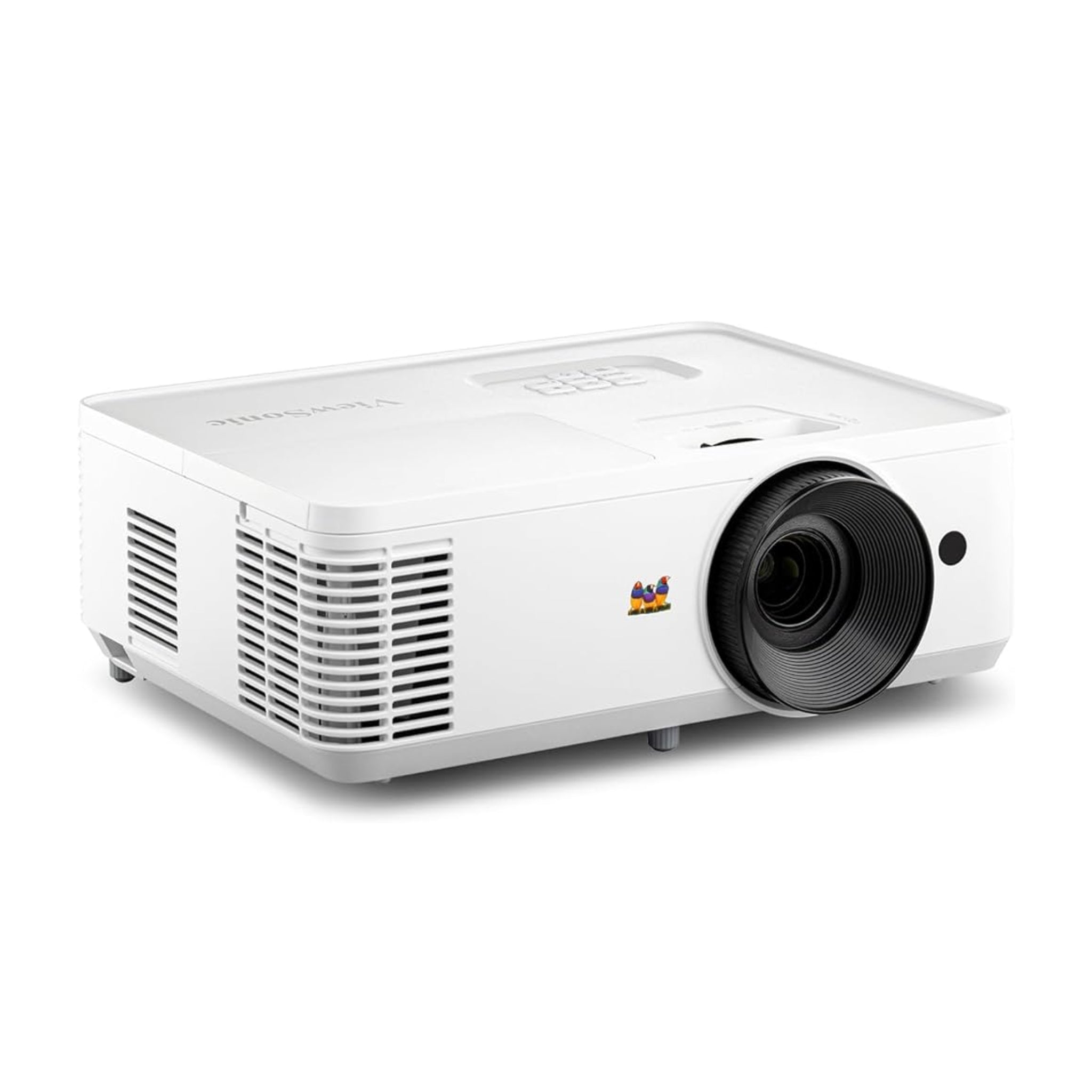

Experience bright, crystal-clear visuals with the PX704HD, ideal for home entertainment and business use. Boasting 4,000 ANSI Lumens and Full HD 1080p resolution, this projector ensures sharp, vivid images even in well-lit environments. The advanced 0.65” DMD chip delivers high native contrast, revealing incredible detail and depth. With support for up to a 300” screen size, dual HDMI inputs, and a USB-A power port, the PX704HD combines performance and versatility for an immersive viewing experience.

Key Features

• 4,000 ANSI Lumens for bright, clear visuals in any lighting


• Native Full HD 1080p resolution for sharp and detailed projection


• High native contrast for deeper blacks and improved image clarity


• Large screen projection up to 300 inches


• Dual HDMI ports and USB-A power supply for flexible connectivity


Technical Specifications

Projection System: 0.65" DMD (1080p)
Native Resolution: 1920 x 1080 (Full HD)
Brightness: 4,000 ANSI Lumens
Contrast Ratio (SuperEco): 22,000:1
Display Color: 1.07 Billion Colors

Light Source Type: 240W UHP Lamp

• Lamp Life (Normal): 4,000 hours


• Lamp Life (SuperEco): 15,000 hours


Lens Specs:

• Aperture: F=2.5–2.67


• Focal Length: f=21.8–24.0mm


• Optical Zoom: 1.1x


• Digital Zoom: 0.8x–2.0x


• Projection Offset: 132% ±10%


• Throw Ratio: 1.48–1.62


• Image Size: 30”–300”


• Throw Distance: 1m–10m (100” @ 3.28m)


Keystone Correction: Vertical ±40°
Input Lag: 16ms
Noise Level: 34dB (Normal), 25dB (Eco)

Supported Resolutions: VGA (640x480) to WUXGA_RB (1920x1200)
HDTV Compatibility: 480i/p, 576i/p, 720p, 1080i/p
Frequency Range:

• Horizontal: 15K–102KHz


• Vertical: 23–120Hz


Connectivity

Inputs:

• 2x HDMI (HDMI 1.4, HDCP 1.4)


• 1x Audio-in (3.5mm)


Outputs:

• 1x Audio-out (3.5mm)


• 1x USB Type-A (Power, 5V/1.5A)


Control Ports:

• 1x RS232 (DB-9 Male)


• 1x USB Type-A (Service/Power Shared)


Power & Environment

• Power Supply: 100–240V ±10%, 50/60Hz


• Power Consumption: 295W (Normal), <0.5W (Standby)


• Operating Temperature: 0–40°C


Dimensions & Weight

• Projector Size (WxDxH): 309 x 234 x 115 mm


• Packaging Size: 400 x 337 x 168 mm


• Net Weight: 2.70 kg


• Gross Weight: 3.80 kg


Languages Supported

• OSD Languages: 23 languages including English, German, French, Chinese, Arabic, Japanese, and more


• User Guide: Available in 20 languages


Accessories

Standard:

• Power Cord


• Remote Control


• Quick Start Guide


• Warranty Card (China Only)


Optional:

• Replacement Lamp: RLC-129


• Air Filter: RSPL


• Wall/Ceiling Mount: PJ-WMK-007


• Carry Bag: PJ-CASE-008
