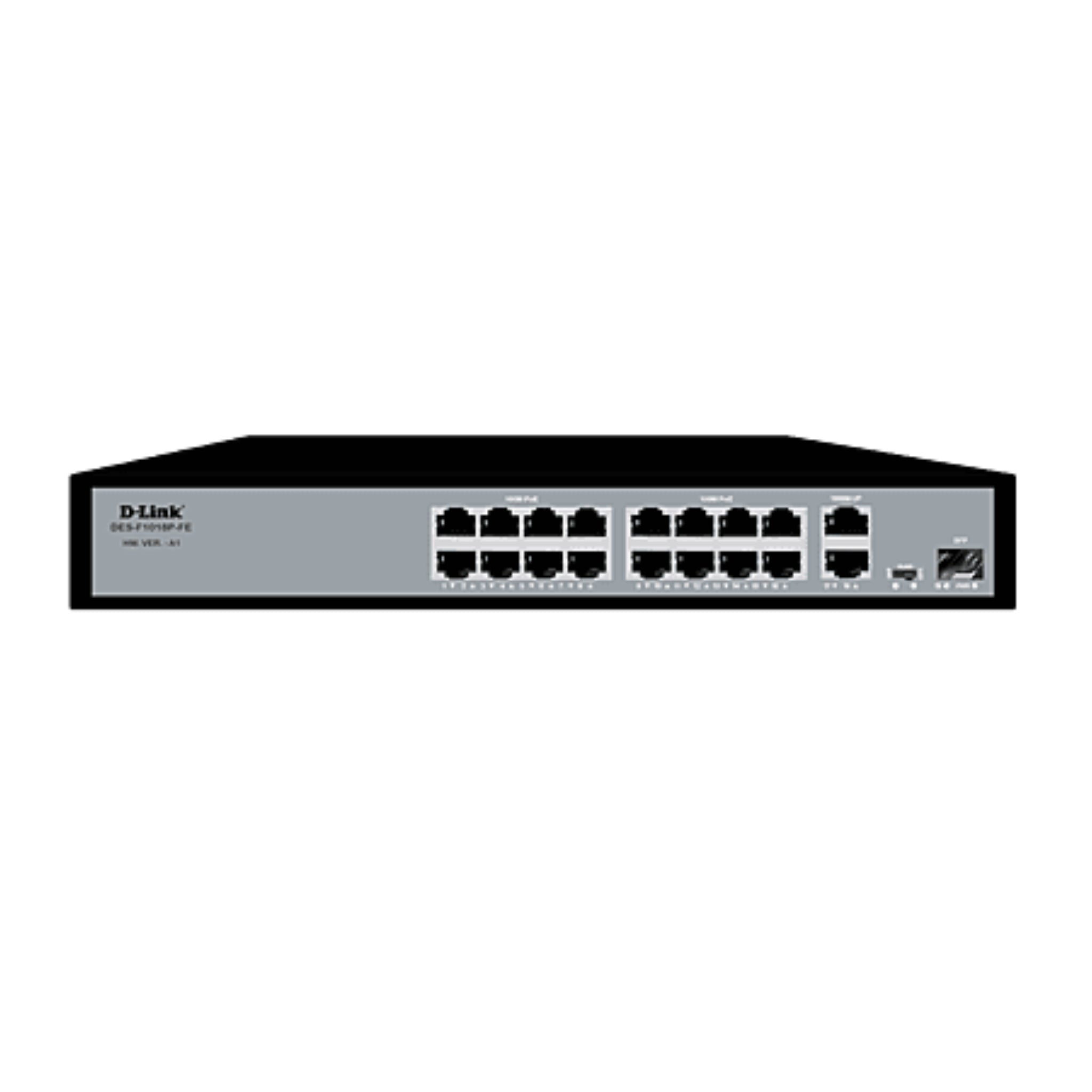

D-Link DES-F1018P-FE
Product Description
The D-Link DES-F1018P-FE is a high-performance PoE switch designed for reliable and cost-effective network deployments. Equipped with 16 Fast Ethernet PoE ports, 2 Gigabit uplink ports, and 1 SFP port, this switch is ideal for connecting IP cameras, wireless access points, IP phones, and other PoE-enabled devices.
With support for IEEE 802.3af/at PoE standards and extended transmission up to 250 meters, it is perfectly suited for surveillance and enterprise networking environments. The switch adopts a store-and-forward switching architecture to ensure stable data transmission and error checking.
Its smart power management system automatically detects connected PD devices and provides the required power while minimizing energy consumption. Built-in power supply circuit protection ensures safety for connected back-end devices. The fanless design ensures silent operation, energy efficiency, and long-term reliability.
Key Features
- 16 × 10/100 Mbps PoE RJ45 Ports
- 2 × 10/100/1000 Mbps Gigabit Uplink Ports
- 1 × SFP Port for fiber connectivity
- 250m PoE transmission support
- Auto MDI/MDIX on all ports
- Store-and-Forward switching method
- Smart power management with 120W PoE budget
- Lightning protection up to 6KV
- Fanless, energy-saving design
- Power-saving function when port is idle
Technical Specifications
Network Interface
- 16 × 10/100 Mbps PoE RJ45 ports
- 2 × 10/100/1000 Mbps Gigabit uplink ports
- 1 × SFP port
- Network Interface: 10BASE-T / 100BASE-TX Ethernet RJ-45
Transmission Rate
- 10/100 Mbps
- Each port supports Auto MDI/MDIX and auto-negotiation
Protocols & Standards
- IEEE 802.3i (10BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3ab (1000BASE-T)
- ANSI/IEEE 802.3 NWay Auto-Negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3af/at PoE Standard
Performance
- Switching Bandwidth: 2 Gbps (Non-blocking)
- Network Delay (100M to 100M): Max 20μs (64-byte packet)
- Packet Forwarding Rate:
- 10Mbps: 14,800 pps
- 100Mbps: 148,800 pps
LED Indicators
- Power
- LINK/ACT
- PoE
PoE Specification
- PoE Pin Assignment: 1/2 (+), 3/6 (-)
- Total PoE Power Budget: 120W
- PoE Standard: IEEE 802.3af/at
Lightning Protection
- 6KV surge protection
Physical Specifications
- Dimensions (L × W × H): 310mm × 183mm × 45mm
- Weight: 1.75 kg
Environmental Specifications
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 70°C
- Operating Humidity: 10% – 90% (non-condensing)
- Storage Humidity: 5% – 90% (non-condensing)
Compliance
- CE Certified
