Product Description

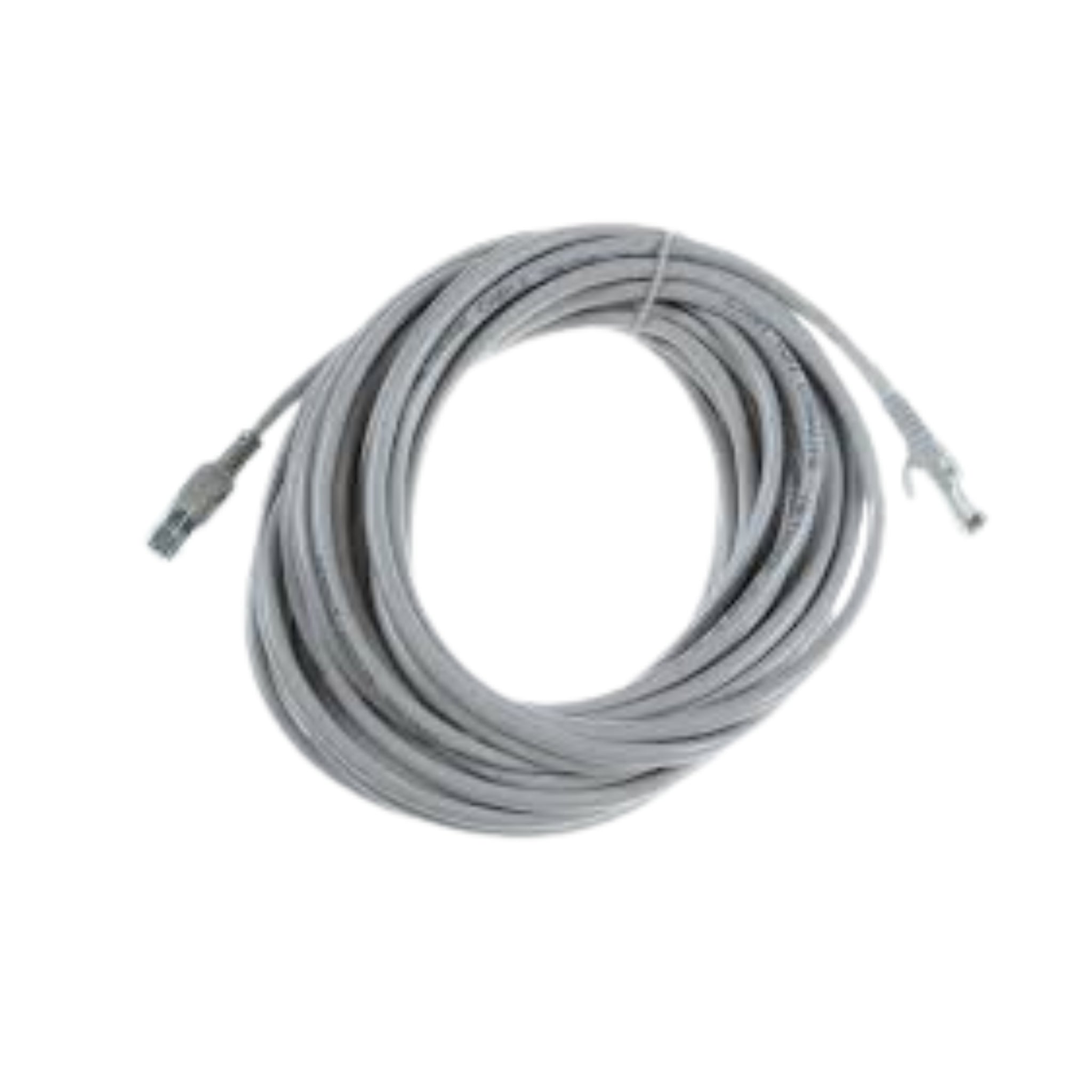

The D-Link Cat 6 Patch Cord 20M Grey (NCB-C6UGRYR1-20) is a high-performance Ethernet cable designed for fast, stable, and long-distance data transmission across Local Area Networks (LANs). Engineered for reliability, this patch cord ensures strong signal integrity, reduced interference, and consistent network performance.
Equipped with snagless RJ-45 connectors, 24AWG twisted solid copper conductors, and high-quality HDPE insulation with FR-PVC outer jacket, the cable offers superior durability and minimal crosstalk. Supporting data transmission speeds of up to 10Gbps, it is ideal for enterprise networks, data centers, surveillance systems, and advanced home networking setups.
Its 20-meter length makes it suitable for extended device connectivity without compromising performance.
Key Highlights
✔ Category 6 UTP Patch Cord
✔ 20 Meter Length
✔ Supports Speeds up to 10Gbps
✔ Snagless RJ-45 Connectors
✔ 30U” Gold-Plated Contacts
✔ FR-PVC Flame-Resistant Jacket
✔ Strong Signal Integrity & Low Interference
✔ PoE Supported
Technical Specifications
General Specifications
- Brand: D-Link
- Model Number: NCB-C6UGRYR1-20
- Category: Cat 6 UTP Patch Cord
- Color: Grey
- Cable Length: 20 Meters
- Application: LAN / Enterprise Networking
Cable & Conductor Details
- Conductor Material: 4 Pairs of 23 AWG Twisted Solid Copper
- Conductor Size: 24AWG (0.51 mm)
- Shielding: Unshielded Twisted Pair (UTP)
- Separator: PE (Polyethylene)
- Minimum Twists per Meter: >200
- Multiplexing: TDM
Insulation & Coating
- Primary Insulation: High-Density Polyethylene (HDPE)
- Outer Jacket: Fire-Resistant PVC (FR-PVC)
Performance & Transmission
- Ethernet Frequency: 200 MHz
- Data Transmission Speed: Up to 10Gbps
Half Duplex Speed Per Port:
- IEEE 802.3ab – 1Gbps
- IEEE 802.3bz – 2.5Gbps
- IEEE 802.3bz – 5Gbps
- IEEE 802.3u – 100Mbps
Supported Network Protocols
- 10GBASE-T
- 5GBASE-T
- 2.5GBASE-T
- 1000BASE-T
- Power over Ethernet (PoE)
Connector Details
- Plug Type: RJ-45 Snagless
- Gold Plating: 30U” Contacts
- Contact Material: Phosphor Bronze
Environmental Conditions
- Operating Temperature Range: -20°C to +75°C
- Storage Temperature Range: 0°C to +50°C
Certifications & Compliance
- TIA Standard: C.2
- UL Listed
- ETL Verified
- RoHS Compliant
