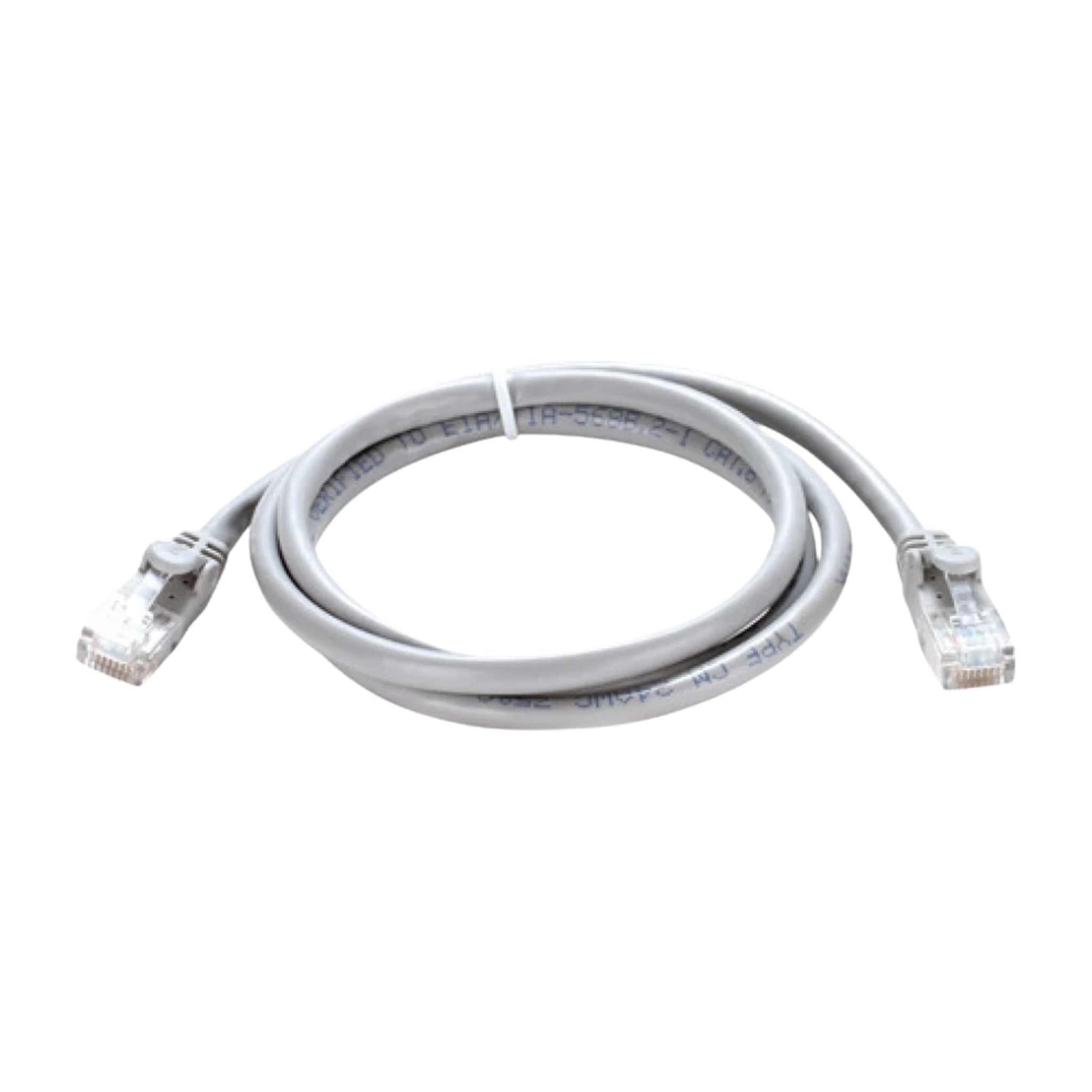

• The D-Link Cat 6 Patch Cord 0.5M Grey (NCB-C6UGRYR1-0.5) is a high-performance Unshielded Twisted Pair (UTP) cable designed for fast and reliable data transmission over Local Area Networks (LANs).

• It exceeds industry standards, ensuring minimal interference and superior signal quality.

• Ideal for various applications, including Ethernet networking, voice communication, and Power over Ethernet (PoE).

Technical Specifications:

Cable Specifications:

• Type: Cat 6 UTP Patch Cord

• Length: 0.5M

• Color: Grey

• Conductor Material: Bare Copper

• Conductor Size: 24 AWG

• Insulation Material: HD-PE (High-Density Polyethylene)

• Jacket Material: PVC UL94V-0

• Heat Resistance: Minimum 60°C (Temperature Limited)

• Flame Resistance: VW-1 (UL); FT-1 (CSA)

Modular Connector / Plug Specifications:

• Connector Type: RJ-45 8P (Transparent Color)

• Gold Plating: 30U”

• Contact Blade Material: Phosphor Bronze

• Temperature Range: -10°C to 80°C

• Dielectric Withstanding Voltage: 500V AC

• Insulation Resistance: ≤ 35M Ohm

• Durability: 750 Matching Cycles

• Cable-to-Plug Tensile Strength: 20lbs (89N) Minimum

• UL Applications: 250V AC, 2A Maximum

• Material: Polycarbonate (PC) UL94-V-0

Application & Compliance:

• Network Compatibility:



• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE 802.3)

• 100VG-AnyLAN (IEEE 802.12)

• 550 MHz Broadband Video

• Voice, T1, ISDN

• 155/622 Mbps ATM

• Power over Ethernet (PoE)

• Certifications:



• UL 444 (for Copper Conductor)

• UL 758 / Style 2835

• UL 1581 (Test Standard)

• Verified compliant with TIA/EIA-568C.2 standards by ETL, CUL listed, RoHS
