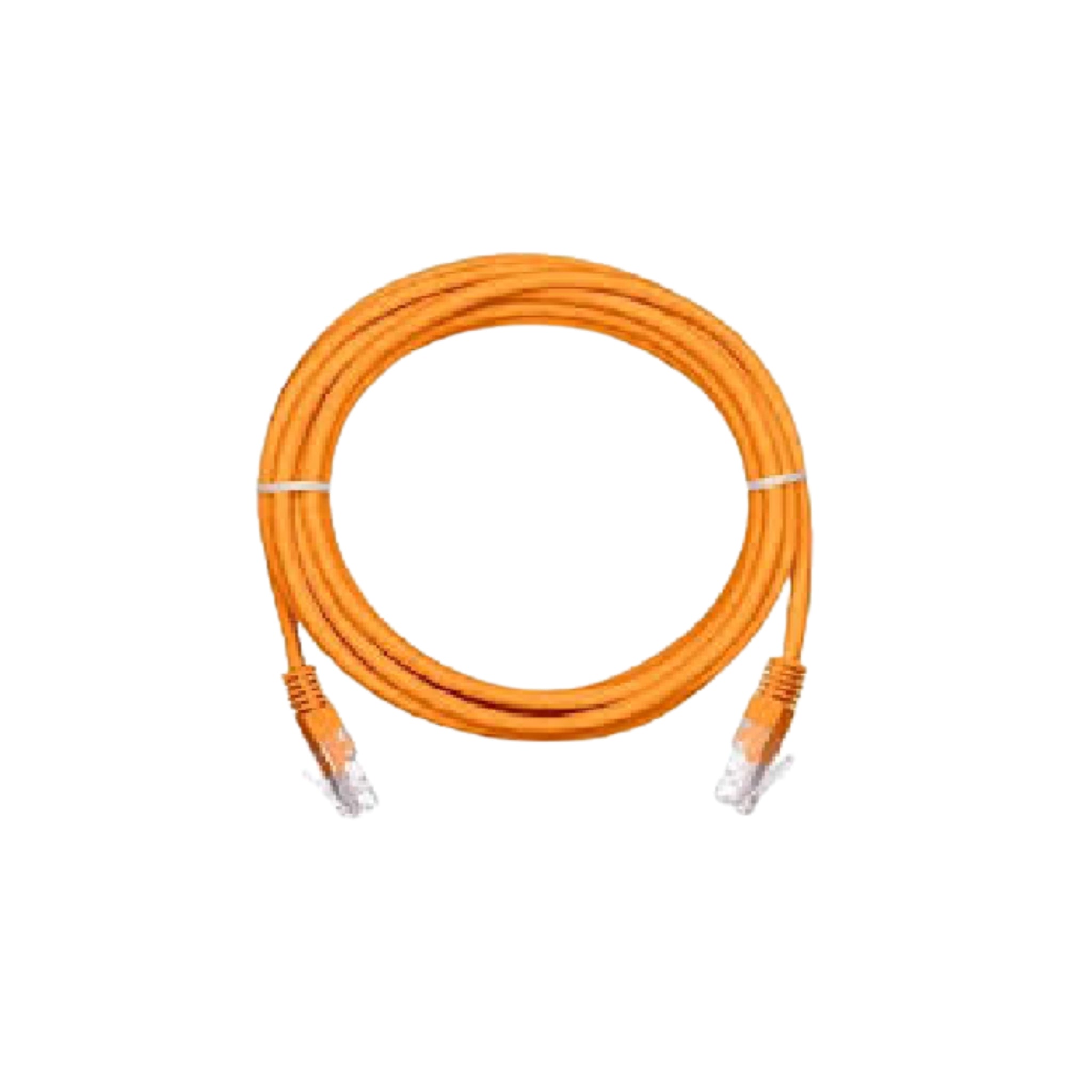

• The D-Link Cat 6 Patch Cord 1M Orange (NCB-C6UORG1-1) is a high-performance Ethernet cable designed for reliable and high-speed network connectivity.

• It supports speeds of up to 10Gbps and meets industry standards for structured cabling.

• Featuring snagless plugs for durability and 24AWG flexible copper conductors, this patch cord ensures efficient data transmission with minimal interference.

• It is ideal for enterprise networking, data centers, and home networking applications.

Technical Specifications:

General Specifications:

• Brand: D-Link

• Model Number: NCB-C6UORG1-1

• Category: Cat 6 UTP Patch Cord

• Color: Orange

• Length: 1 Meter

• Weight: 0.1 kg

• Dimensions: 10 × 10 × 10 cm

Cable & Conductor Details:

• Conductor Material: 4 Pairs of 23 AWG Twisted Solid Copper

• Copper Diameter: 24AWG (0.51mm)

• Shielding: Unshielded Twisted Pair (UTP)

• Separator: PE (Polyethylene)

• Minimum Twists per Meter: >200

• Multiplexing: TDM

Insulation & Coating:

• Primary Insulation: High-Density Polyethylene (HDPE) over Copper Wires

• Outer Jacket: Fire-Resistant PVC (FR-PVC)

Performance & Transmission:

• Ethernet Frequency: 200 MHz

• Data Transmission Speed: Up to 10Gbps

• Half Duplex Speed Per Port:

• 802.3ab – 1Gbps

• 802.3bz – 2.5Gbps

• 802.3bz – 5Gbps

• 802.3u – 100Mbps

• Transmission Protocols Supported:

• 10GBASE-T

• 5GBASE-T

• 2.5GBASE-T

• 1000BASE-T

• Power over Ethernet (PoE)

Connector Details:

• Plug Type: RJ-45 Snagless

• Gold Plating: 30U" Contacts for strong and consistent connectivity

• Cable-to-Plug Tensile Strength: 20lbs (89N) Minimum

Environmental Conditions:

• Operating Temperature Range: -20°C to +75°C

• Storage Temperature Range: 0°C to +50°C

Certifications & Compliance:

• TIA Standard: C.2

• UL Listed

• ETL Verified

• RoHS Compliant
