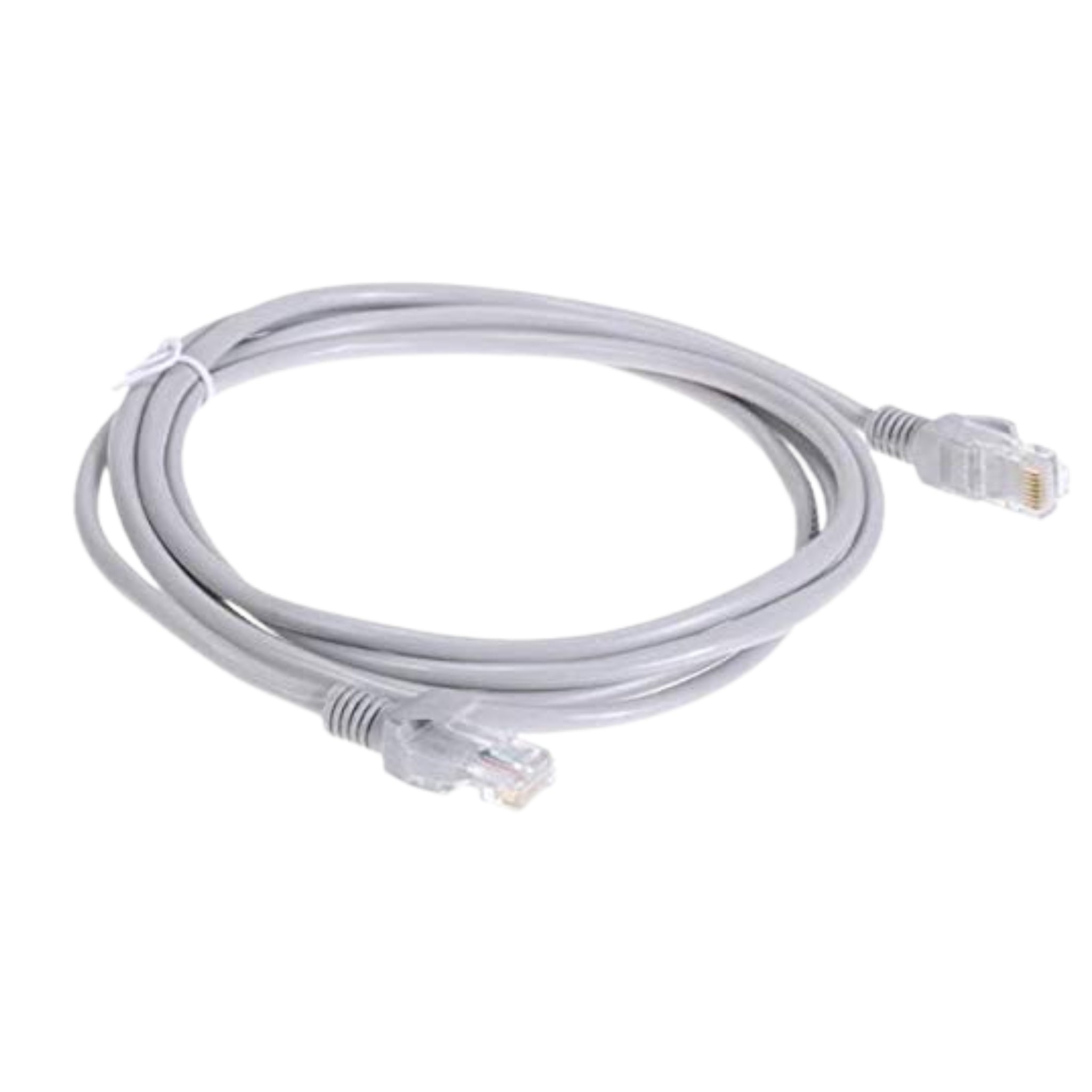

• The D-Link Cat 6 STP Patch Cord 3M Grey (NCB-C6SGRYR1-3) is a high-performance shielded Ethernet cable designed for fast and secure data transmission in Local Area Networks (LANs).

• Featuring snagless plugs, 26AWG twisted solid copper conductors, and HDPE and FR-PVC insulation, this patch cord provides enhanced durability, superior noise immunity, and minimal interference.

• Supporting speeds of up to 10Gbps, it is an ideal choice for enterprise networking, data centers, and high-speed home networking applications.

Technical Specifications:

General Specifications:

• Brand: D-Link

• Model Number: NCB-C6SGRYR1-3

• Category: Cat 6 STP (Shielded Twisted Pair) Patch Cord

• Color: Grey

• Cable Length: 3 Meters

Cable & Conductor Details:

• Conductor Material: 4 Pairs of 26 AWG Twisted Solid Copper

• Conductor Size: 26AWG (0.40mm)

• Shielding: Shielded Twisted Pair (STP)

• Separator: PE (Polyethylene)

• Minimum Twists per Meter: >200

• Multiplexing: TDM

Insulation & Coating:

• Primary Insulation: High-Density Polyethylene (HDPE) over Copper Wires

• Outer Jacket: Fire-Resistant PVC (FR-PVC)

Performance & Transmission:

• Ethernet Frequency: 200 MHz

• Data Transmission Speed: Up to 10Gbps

• Half Duplex Speed Per Port:

• 802.3ab – 1Gbps

• 802.3bz – 2.5Gbps

• 802.3bz – 5Gbps

• 802.3u – 100Mbps

• Supported Network Protocols:

• 10GBASE-T

• 5GBASE-T

• 2.5GBASE-T

• 1000BASE-T

• Power over Ethernet (PoE)

Connector Details:

• Plug Type: RJ-45 Snagless

• Gold Plating: 30U" Contacts for strong and consistent connectivity

Environmental Conditions:

• Operating Temperature Range: -20°C to +75°C

• Storage Temperature Range: 0°C to +50°C

Certifications & Compliance:

• TIA Standard: C.2

• UL Listed

• ETL Verified

• RoHS Compliant
