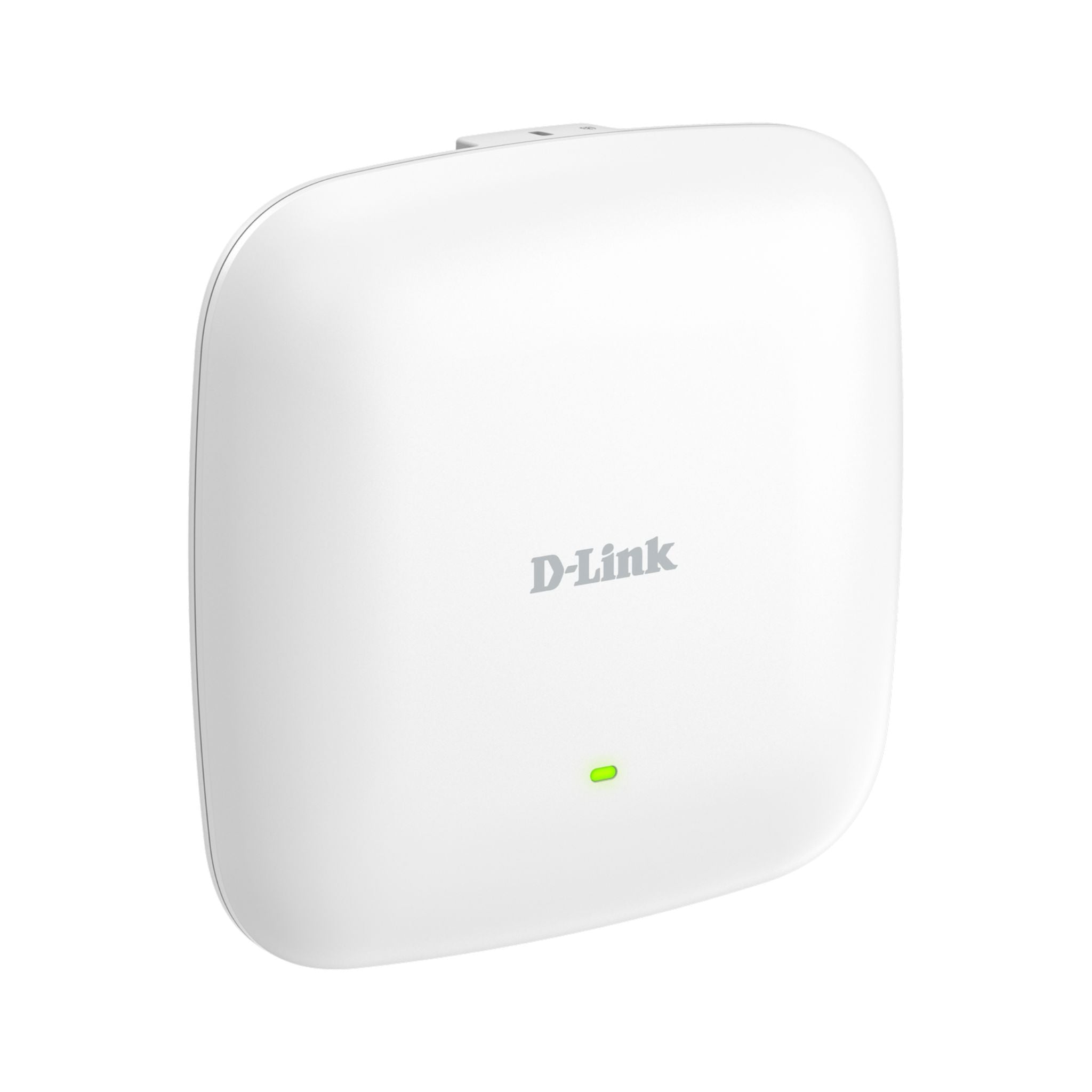

DAP-X3060 - Wireless Access Point

Model Number:

• DAP-X3060

Key Specifications:

• Wireless Standard:

  • Wi-Fi 6 (802.11ax) support, the latest Wi-Fi standard, providing faster speeds, improved capacity, and better performance in high-density environments.

• Wi-Fi Speeds:

  • Up to 6 Gbps combined (1.2 Gbps on 2.4 GHz and 4.8 Gbps on 5 GHz), delivering ultra-fast wireless speeds for bandwidth-intensive applications like 4K/8K video streaming, gaming, and large file transfers.

• Dual-Band Wireless:

  • Operates on both the 2.4 GHz and 5 GHz bands, providing flexibility and minimizing interference. The 5 GHz band offers faster speeds, while the 2.4 GHz band provides extended range.

• OFDMA (Orthogonal Frequency Division Multiple Access):

  • Supports OFDMA, enabling more efficient use of the available spectrum. This allows multiple devices to transmit data simultaneously, reducing latency and increasing capacity in environments with many connected devices.

• MU-MIMO (Multi-User, Multiple-Input, Multiple-Output):

  • MU-MIMO support allows the access point to communicate with multiple devices at the same time, improving overall network efficiency and reducing congestion, especially in busy environments.

• Power over Ethernet (PoE):

  • PoE (802.3af/at) support allows for power delivery through the Ethernet cable, simplifying installation by eliminating the need for a separate power supply.

• Security Features:

  • Supports the latest WPA3 encryption standard, providing enhanced security for the wireless network.
  • Backward compatible with WPA2 and WPA3, ensuring robust encryption.
  • Supports 802.1X authentication for secure network access control.

• Advanced Quality of Service (QoS):

  • QoS (Quality of Service) prioritizes traffic, ensuring that latency-sensitive applications (e.g., VoIP, video conferencing, gaming) receive the bandwidth they need for optimal performance.

• Management Options:

  • Managed via a web-based interface for simple and quick configuration.
  • D-Link Nuclias Cloud Management for centralized, cloud-based monitoring and management of the network.
  • D-Link Centralized Wireless Management (DWMS) for enterprise-level network management, especially in larger deployments.

• High-Gain Antennas:

  • Equipped with high-gain external antennas to extend wireless coverage and improve signal strength in large or multi-floor environments.

• Seamless Roaming:

  • Supports seamless roaming for devices, ensuring users experience a stable connection as they move throughout the coverage area without drops.

• Flexible Mounting Options:

  • Can be ceiling or wall-mounted, offering flexibility in placement to ensure optimal coverage in different environments (e.g., offices, retail spaces, public venues).

• Backward Compatibility:

  • Fully backward compatible with 802.11ac (Wi-Fi 5) and 802.11n (Wi-Fi 4) devices, ensuring it works seamlessly with older devices while providing Wi-Fi 6 advantages for newer ones.

Use Cases:

• High-Density Environments: Ideal for large office buildings, conference rooms, campuses, airports, or other high-density environments where many devices need fast and reliable wireless access.
• Enterprise Networks: Suitable for businesses that require high-capacity and secure Wi-Fi connectivity for staff, guests, and connected devices.
• Public Venues: Perfect for retail stores, convention centers, and event spaces where large crowds require seamless and high-performance wireless access.
• Smart Office and IoT Deployments: Supports smart devices and IoT applications that require reliable and high-speed connectivity.
