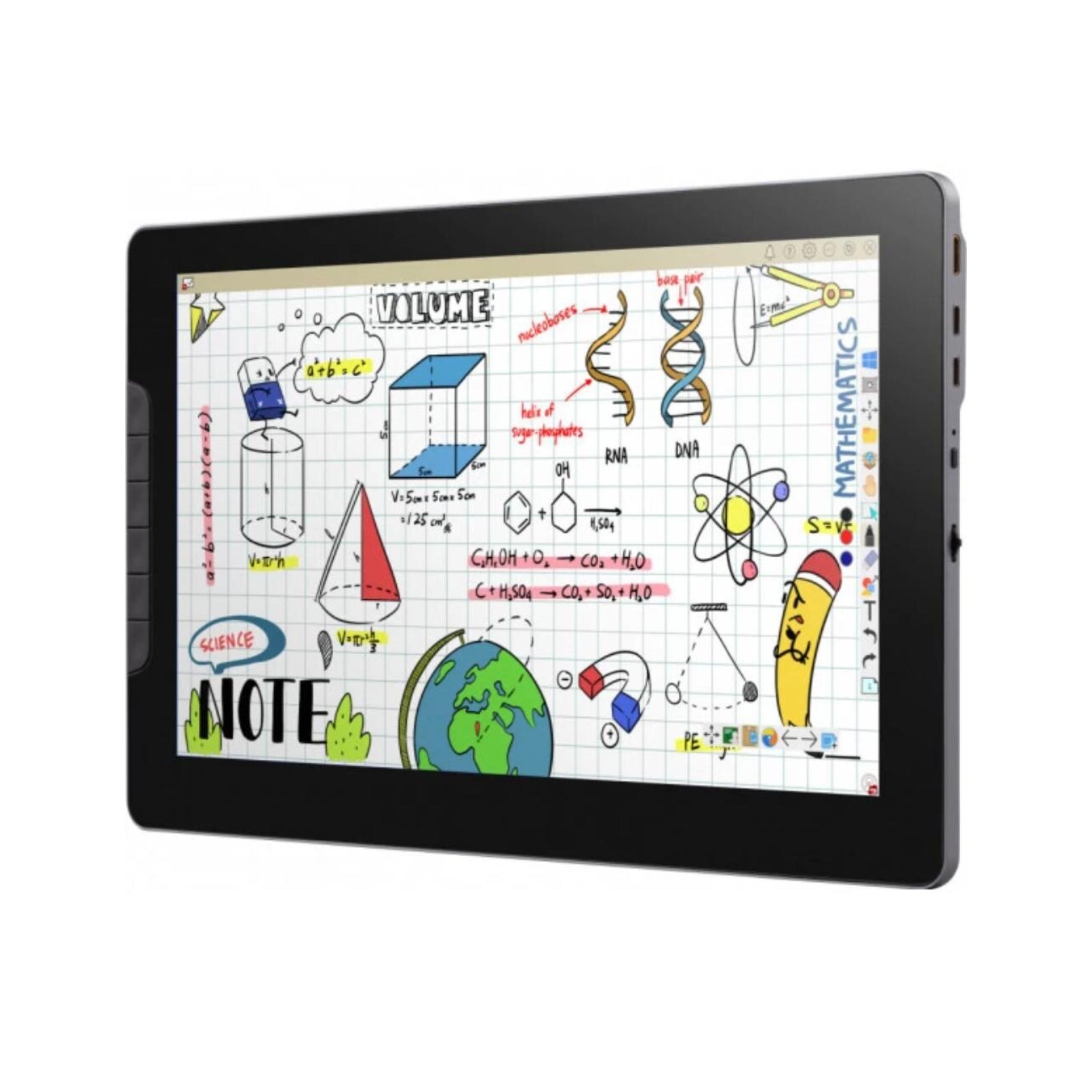

The ViewSonic ID1330 is a compact and lightweight 13.3" pen display designed for digital writing, drawing, and annotation. With 8192 levels of pressure sensitivity and ±60° tilt support, it delivers a natural pen-on-paper experience on a durable 8H tempered glass surface. Ideal for educators, professionals, and creatives, the ID1330 offers plug-and-play simplicity with a single USB-C or HDMI connection and works seamlessly with Windows and macOS platforms. Its sleek, ultra-thin profile makes it a perfect solution for on-the-go productivity without compromising precision or performance.
Technical Specifications
Display
· Screen Size: 13.3" (294 × 165 mm)
· Resolution: Full HD 1920 × 1080
· Brightness: 300 cd/m²
· Contrast Ratio: 800:1
· Backlight: LED Light-Bar
· Viewing Angles: 178° (Horizontal & Vertical)
· Surface: 8H Tempered Glass (Paper-like Texture)
Pen & Touch Input
· Input Technology: Electromagnetic Resonance (EMR)
· Pen Type: Battery-Free Pen
· Pressure Sensitivity: 8192 Levels
· Response Rate: 266 PPS (Points Per Second)
· Accuracy: ±0.25 mm
· Tilt Support: ±60°
· Detection Height: 15 mm
Connectivity
· Ports:
o Mini HDMI to HDMI
o USB Type-C to USB Type-A
o USB Type-C to USB Type-C
· Power: Bus Powered via USB (No External Adapter Needed)
Compatibility
· Operating Systems:
o Windows 7 and above
o macOS 10.15 and above
Operating Conditions
· Temperature: 0°C to 40°C (32°F to 104°F)
· Humidity: 20%–80% (Non-condensing)
Dimensions & Weight
· Physical Dimensions: 344 × 210 × 7 mm (13.54 × 8.27 × 0.28 in)
· Box Dimensions: 420 × 375 × 300 mm (16.54 × 14.76 × 11.81 in)
· Net Weight: 0.815 kg (1.81 lb)
· Gross Weight: 1.45 kg (3.31 lb)
Warranty
· 1 Year
What’s in the Box
1. ID1330 Pen Display
2. Battery-Free Pen
3. USB-C to USB-C Cable (1m)
4. Mini HDMI to HDMI Cable (1m)
5. USB-C to USB-A Cable (1m)
6. Pen Nibs × 3
7. Pen Nib Clip × 1
8. Protective Cover × 1
9. Quick Start Guide × 1
