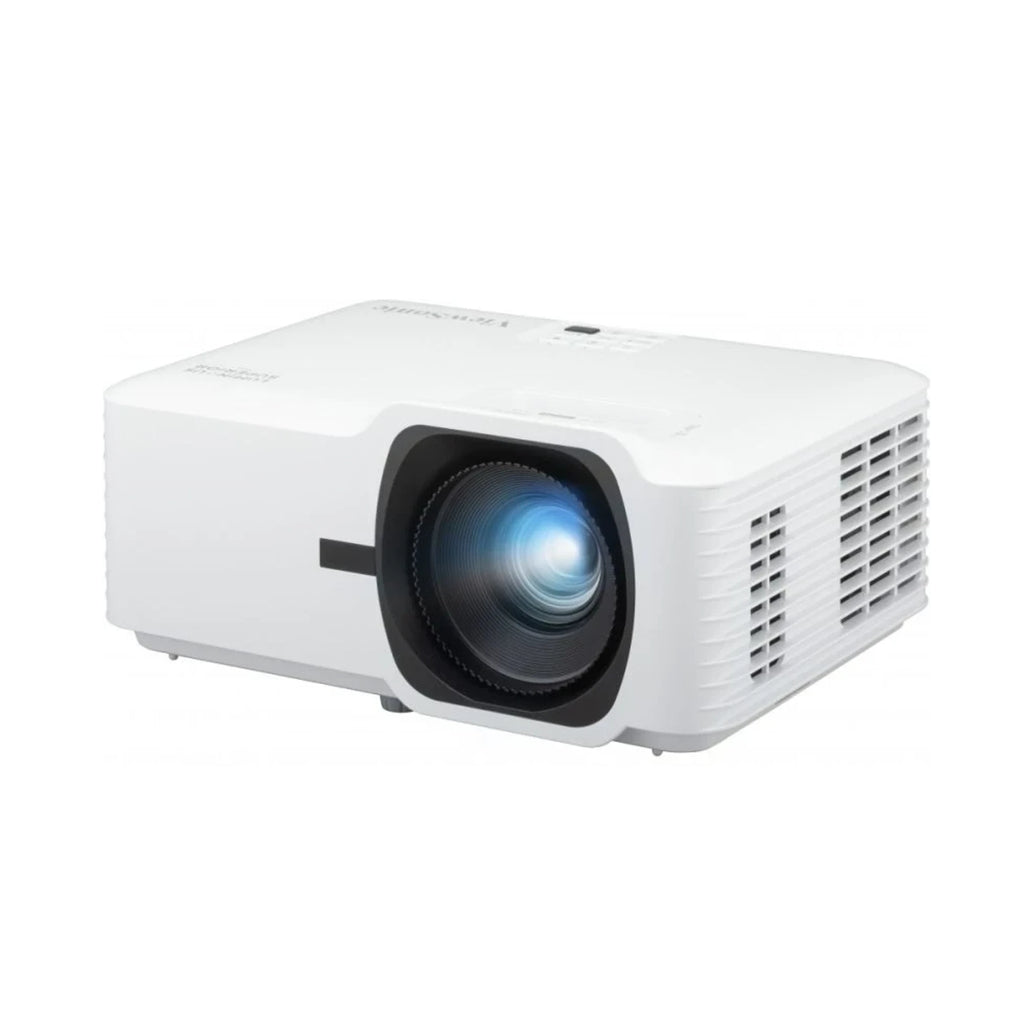

The ViewSonic LS740HD is a high-performance laser projector designed for installation in large venues and professional environments. Equipped with 3rd generation laser phosphor technology, it delivers consistent brightness of 5,000 ANSI Lumens and an ultra-long light source lifespan of up to 30,000 hours. This Full HD projector supports ultra-large screens up to 300", offering exceptional image clarity, lower cost-per-inch, and remarkable flexibility for any setup — be it ceiling-mounted, portrait-oriented, or in 360° projection. Its compact design and lightweight build reduce logistics and installation costs while enhancing ease of deployment.

Technical Specifications

Projection System

• DMD Chip: 0.65" 1080p


• Native Resolution: 1920 x 1080 (Full HD)


• Brightness: 5,000 ANSI Lumens


• Brightness (Center): 5,500 Lumens


• Contrast Ratio: 3,000,000:1


• Display Color: 1.07 Billion Colors


Light Source

• Type: Laser Phosphor


• Lifespan (Normal): 20,000 hours


• Lifespan (Eco/SuperEco): 30,000 hours


Lens & Image

• Lens: F=2.43-2.78, f=16.90–21.61mm


• Projection Offset: 132% ±10%


• Throw Ratio: 1.13–1.47


• Optical Zoom: 1.3x


• Digital Zoom: 0.8x–2.0x


• Image Size: 30" – 300"


• Throw Distance: 0.75 – 9.76m (100" @ 2.50m)


Adjustments

• Keystone Correction: Horizontal/Vertical ±30°


• 360° Projection: Supported


• Portrait Mode: Supported


Audio

• Built-in Speaker: 15W


Connectivity

• Inputs:


• HDMI (v1.4 / HDCP 1.4) x 2


• Outputs:


• Audio Out (3.5mm) x 1


• Control Ports:


• RS232 (DB-9) x 1


• USB Type-A (Power: 5V/1.5A) x 1


• USB Type-A (Service) x 1 (shared with power USB)


Compatibility & Performance

• Input Lag: 49.5ms


• Supported Resolutions: VGA (640x480) to WUXGA_RB (1920x1200)


• HDTV Compatibility: 480i/p, 576i/p, 720p, 1080i/p


• Horizontal Frequency: 15K–102KHz


• Vertical Scan Rate: 24–120Hz


• Audible Noise: 30dB (Normal), 24dB (Eco)


Power & Environment

• Power Supply: 100~240V, 50/60Hz


• Power Consumption: 210W (Normal), <0.5W (Standby)


• Operating Temperature: 0~40°C


Dimensions & Weight

• Product Size (WxDxH): 286 x 216 x 129 mm


• Packing Size: 400 x 280 x 155 mm


• Net Weight: 3.00 kg


• Gross Weight: 4.70 kg


Languages

• OSD: 23 languages including English, Chinese (S/T), French, German, Japanese, Korean, Arabic, etc.


• User Guide: 20 languages


Standard Accessories

• Power Cord x 1


• Remote Control x 1


• Quick Start Guide (QSG)


• Warranty Card (CN only)


Optional Accessories

• Wall/Ceiling Mount: PJ-WMK-007


• Carry Bag: PJ-CASE-008
