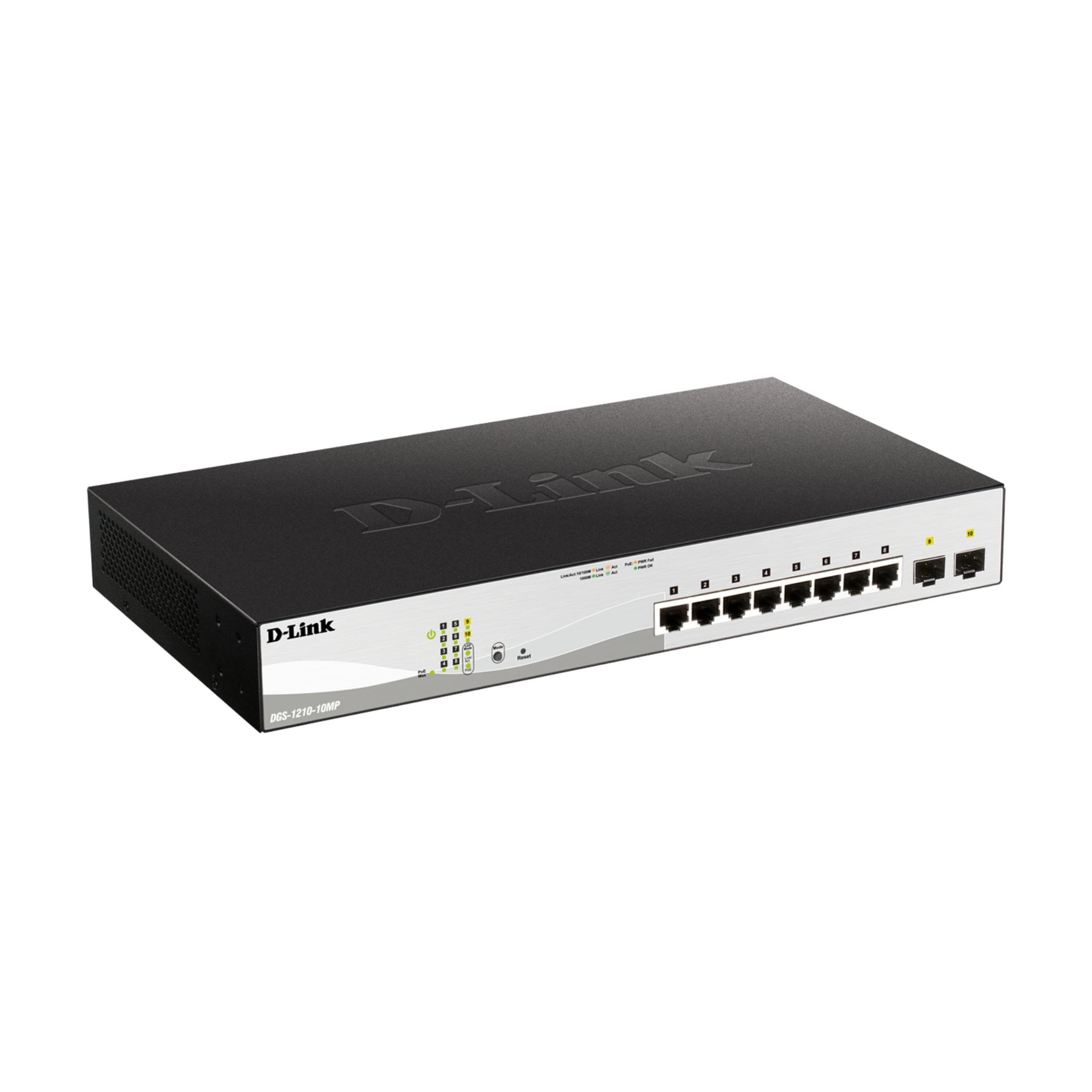

• The D-Link DGS-1210-10MP is a Smart Managed PoE Switch designed for businesses requiring power-efficient networking with advanced Layer 2 features.

• It features 8 PoE-enabled Gigabit Ethernet ports and 2 Gigabit SFP ports, allowing seamless network expansion with high-speed data transmission.

• With a 130W PoE budget, it supports IEEE 802.3af/at PoE standards, making it ideal for IP cameras, VoIP phones, and wireless access points.

• The switch also offers robust security, intuitive management, and energy-saving capabilities, ensuring reliable and cost-effective performance.

Technical Specifications:

Hardware:

• Ports:



• 8 x 10/100/1000BASE-T PoE ports

• 2 x 100/1000 Mbps SFP ports

• PoE Power Budget: 130W



• Switching Capacity: 20 Gbps



• Forwarding Rate: 14.88 Mpps



• MAC Address Table: 8K entries



• Packet Buffer: 4.1 Mbits



• Flash Memory: 32 MB



• CPU Memory: 256 MB DDR3



Performance & Features:

• Forwarding Method: Store-and-Forward

• PoE Standard: IEEE 802.3af/at

• Network Protection: 6KV surge protection

• Management Options:

• Web-based UI

• Command Line Interface (CLI) via Telnet/SSH

• D-Link Network Assistant (DNA)

• SNMP v1/v2c/v3

Layer 2 Features:

• Spanning Tree Protocol (STP, RSTP, MSTP)

• Link Aggregation (802.3ad, up to 8 ports per group)

• VLAN Support: 802.1Q, Voice VLAN, Auto Surveillance VLAN

• QoS: 8 queues per port, Traffic Prioritization

Security Features:

• Access Control Lists (ACLs)

• IP-MAC-Port Binding (IMPB)

• Port Security

• DHCP Snooping, ARP Inspection, DoS Attack Prevention

Physical & Environmental:

• Power Input: 100-240V AC, 50/60 Hz

• Power Consumption:

• PoE on: 152.3W

• PoE off: 9.4W

• Dimensions: 330 x 180 x 44 mm

• Weight: 1.77 kg

• Fanless Design: Silent operation

• Operating Temperature: -5°C to 50°C

Certifications: FCC Class A, CE Class A, UL, CB, BSMI
