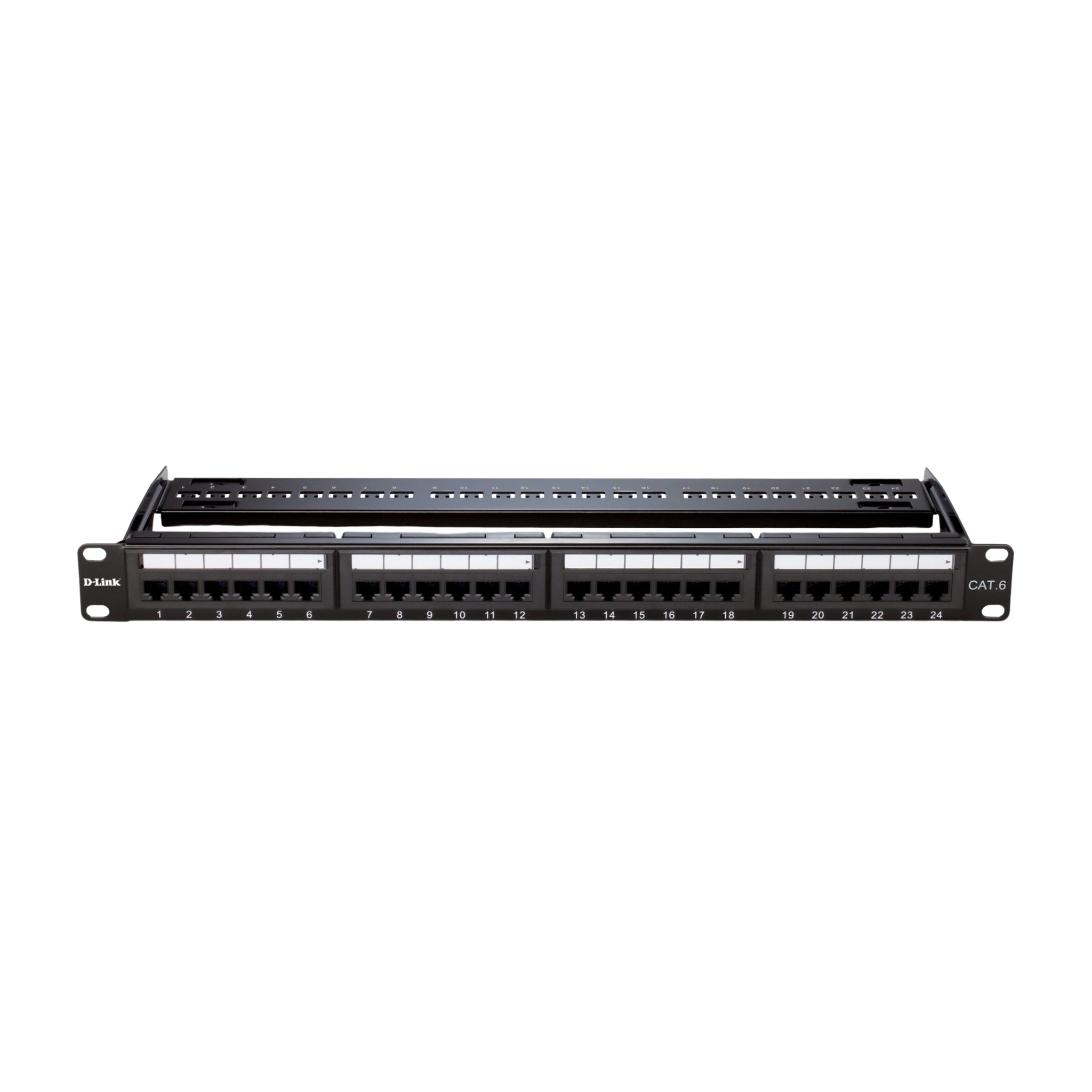

• The D-Link 24-Port Cat 6 Loaded Patch Panel (NPP-C61BLK241) is a high-performance networking solution designed to support structured cabling for data centers and enterprise networks.

• It provides a reliable and organized way to terminate and manage network cables, ensuring optimal performance and minimal signal loss.

• The panel is preloaded with Cat 6 ports, making installation quick and efficient while maintaining high-speed data transmission.

Technical Specifications:

• Product Type: Loaded Patch Panel

• Total Ports: 24

• Category: Cat 6

• Connector Type: RJ45

• Mounting: Standard 19-inch rack-mountable (1U)

• Conductor Material: Phosphor Bronze with Gold Plating

• Insulation Material: Polycarbonate UL94V-0

• IDC Type: 110 and Krone Compatible

• Wiring Scheme: TIA/EIA-568A & TIA/EIA-568B

• Contact Resistance: ≤ 20mΩ

• Insulation Resistance: ≥ 500MΩ

• Performance:

• Supports data transmission speeds up to 1 Gbps

• Bandwidth up to 250 MHz

• Ensures minimal signal loss and interference

• Compliance:

• ANSI/TIA-568-C.2

• ISO/IEC 11801

• RoHS Compliant
