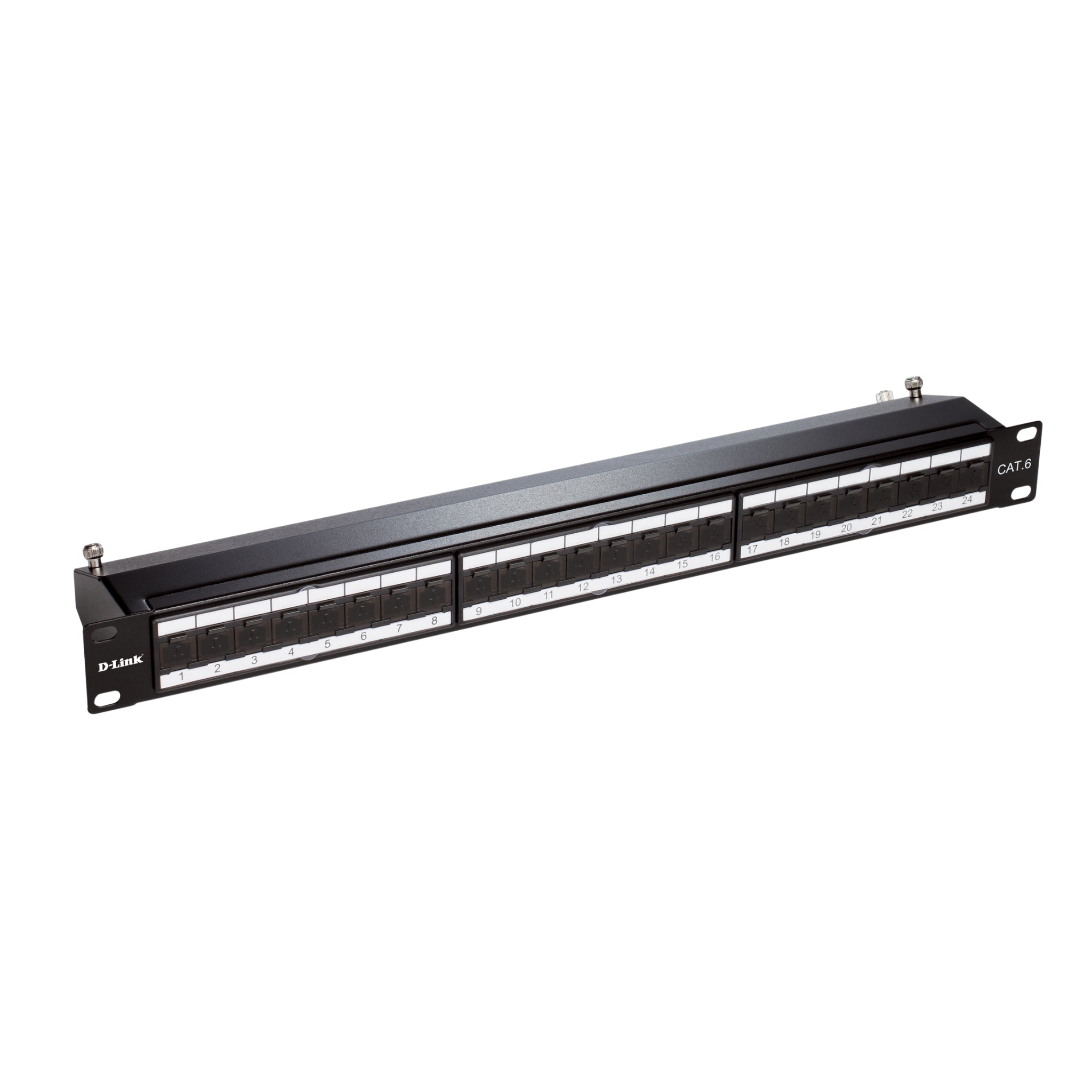

• The D-Link 24-Port Cat 6 STP Patch Panel (NPP-C62BLK241) is designed for high-performance, shielded networking applications, providing enhanced protection against electromagnetic interference (EMI) and crosstalk.

• This shielded patch panel ensures reliable and efficient data transmission, making it ideal for enterprise networks, data centers, and environments with high electrical interference.

• It is compatible with standard 19-inch racks and supports both 110 and Krone punch-down tools.

Technical Specifications:

• Product Type: Shielded Patch Panel (STP)

• Total Ports: 24

• Category: Cat 6

• Connector Type: RJ45

• Mounting: Standard 19-inch rack-mountable (1U)

• Shielding: STP (Shielded Twisted Pair)

• Conductor Material: Phosphor Bronze with Gold Plating

• Insulation Material: Polycarbonate UL94V-0

• IDC Type: 110 and Krone Compatible

• Wiring Scheme: TIA/EIA-568A & TIA/EIA-568B

• Contact Resistance: ≤ 20mΩ

• Insulation Resistance: ≥ 500MΩ

• Performance:

• Supports high-speed data transmission up to 1 Gbps

• Bandwidth up to 250 MHz

• Effective shielding against EMI and crosstalk

• Compliance:

• ANSI/TIA-568-C.2

• ISO/IEC 11801

• RoHS Compliant
